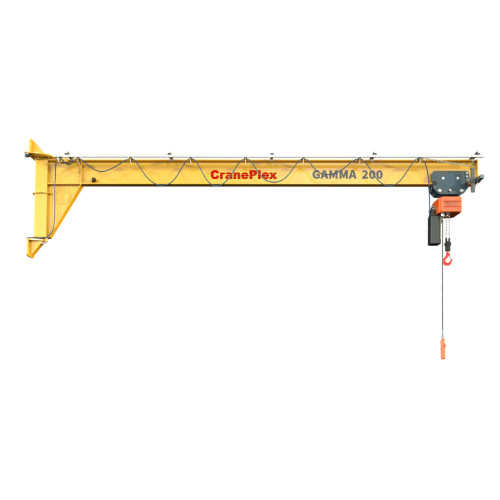

Wall-Mounted Slewing Jib Crane - GAMMA 200 | Craneplex

Maximise your floor space and streamline your material handling processes with the Wall-Mounted Slewing Jib Crane GAMMA 200. Designed for precision, durability, and robust safety, this European-made crane provides the ultimate lifting solution for businesses across the UK.

By fixing directly to your existing building structure or support pillars, the GAMMA 200 delivers exceptional lifting power without taking up valuable floor space, ensuring your facility remains clear and efficient.

Versatile Applications & Outdoor Adaptability

The GAMMA 200 is highly adaptable to a wide variety of working environments. While traditionally used indoors, this crane can be fully adapted for outdoor use. With bespoke weather-proofing options (such as specialised coatings, sealed electronics, and weather covers), it is fully equipped to handle external environmental conditions safely.

Ideal for a wide range of industries, including:

• Manufacturing & Assembly Lines: Precise component positioning and heavy machinery assembly.
• Engineering Workshops & Garages: Lifting engines, heavy parts, and tooling equipment.
• Logistics & Warehousing: Efficient loading and unloading of pallets and heavy goods.
• Marine & Outdoor Yards: Handling materials on docks, timber yards, and outdoor storage facilities.
• Construction & Fabrication: Moving heavy steelworks and construction materials.

Key Operational Features

Engineered for versatile, everyday heavy lifting, the GAMMA 200 features a highly customisable setup to match your exact workflow:

• Slewing Range: 180° manual rotation, allowing for wide-reaching operational flexibility.
• Hoist Options: Available with either an electric or manual chain hoist.
• Trolley Mechanism: Choose between an electric or manual trolley for load traversal.
• Control Systems: Operate via a control cassette attached directly to the hoist, or opt for an independently moving pendant suspended under the trolley for greater operator freedom.
• Cable Routing: Single cable route as standard, with a double cable route available as an option.

Recommended equipment. Optional:

• electric chain hoist ESW + trolley EWP
• electric chain hoist ESW + electric trolley EWE



ESW+EWP				ESW+EWE
Power supply: 400V three-phase				Power supply: 400V three-phase
Code	WLL	Vlifting		Code	WLL	Vlifting	GNP
	[kg]	[m/min]			[kg]	[m/min]	ISO/FEM
ESW-EWP 00.125-3.0	125	8/2		ESW-EWE 00.125-3.0	125	8/2	M5/2m
ESW-EWP 00.16-3.0	160	8/2		ESW-EWE 00.16-3.0	160	8/2	M5/2m
ESW-EWP 00.25-3.0	250	8/2		ESW-EWE 00.25-3.0	250	8/2	M5/2m
ESW-EWP 00.5-3.0	500	8/2		ESW-EWE 00.5-3.0	500	8/2	M5/2m
ESW-EWP 01.0-3.0	1000	8/2		ESW-EWE 01.0-3.0	1000	8/2	M5/2m
ESW-EWP 01.6-3.0	1600	4/1		ESW-EWE 01.6-3.0	1600	4/1	M5/2m
GNP M5/2m				ESW-EWE 02.0-3.0	2000	4/1	M5/2m
				ESW-EWE 03.0-3.0	3000	6/1,5	M4/1Am
				ESW-EWE 05.0-3.0	5000	3/0,75	M5/2m

Control:

cassette control ST for ESW+EWP	cassette control ST for ESW+EWE

Cable route:

Arm rotation drive:

• manual drive
• SP arm rotation retarder



Working area limitation:

• SB arm rotation lock
• SO arm rotation limiter adjustable



Electrical socket:

Optional additional electrical socket at the hoist, enabling the supply of suspended devices, e.g. vacuum grippers with an electric pump

Fixing of wall-mounted jib cranes:

• SD screwed to the supporting structure (standard)




• SF clamp on threaded rods (option)




In the case of mounting the crane to the building structure, an analysis should be carried out taking into account the static loads transferred to the structure by the crane.

Fully Certified for the UK & Europe

Quality, safety, and compliance are non-negotiable at Craneplex.co.uk. The GAMMA 200 is manufactured in the EU and strictly adheres to the highest industry regulatory standards:

• UKCA Marked
• BS EN 13001 (Crane Safety & Design)
• BS EN 60204-32 (Electrical Equipment of Machines)
• Supply of Machinery (Safety) Regulations 2008

Customise Your Lifting Solution Today

At Craneplex, we understand that no two workspaces are exactly alike. We offer full customisation of the GAMMA 200 jib crane to meet your specific site requirements, operational demands, and weather-proofing needs.

(Please note: The listed price does not include installation costs.)

Ready to upgrade your workflow? Get in touch with our expert team today to discuss your bespoke requirements and receive a tailored quote.
