Pillar-mounted slewing jib crane BETA 500 fastening to the concrete floor

Optimise your material handling with the heavy-duty BETA 500 Pillar-Mounted Slewing Jib Crane from Craneplex. Manufactured in the EU and fully UKCA marked, this premium floor-mounted crane is designed for secure fastening directly to concrete floors, providing a highly stable lifting solution for industrial workstations, assembly lines, and loading bays.

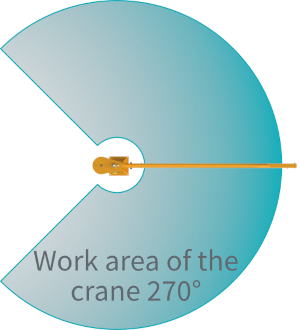

Boasting a Working Load Limit (WLL) ranging from 63 kg to 1000 kg and a versatile outreach of 1 to 6 metres, the BETA 500 combines smooth 270° manual slewing with the heavy-lifting power of an electric chain hoist. The standard pillar height (Hp) is 2500 mm, though bespoke dimensions can easily be accommodated upon request.

Key Features & Build Quality:

• Robust Construction: Manufactured from high-strength steel. The support column features a heavy-duty steel pipe design, engineered for maximum stability.
• Corrosion Resistance: Built for longevity in tough environments, featuring professional machine shot-blasting and a highly durable two-layer spray painting process.
• Flexible Operation: The electric hoist and manual trolley are controlled via an attached pendant cassette (or optionally as a separate control unit) for safe, ergonomic handling.
• Fully Certified & Compliant: Engineered to meet rigorous UK and European safety standards:

        - BS EN 13001

        - BS EN 60204-32

        - Supply of Machinery (Safety) Regulations 2008

        - UKCA Approved & Made in the EU

Recommended Optional Hoist Equipment:

To ensure your BETA 500 crane performs perfectly, Craneplex offers telectric chain hoist and manual trolley combinations. Both options require a standard 400V three-phase power supply.

• electric chain hoist VX + trolley WS
• electric chain hoist ESW + trolley WS



VX+WS					ESW+WS
Power supply: 400V three-phase					Power supply: 400V three-phase
Code	WLL	Vlifting	GNP		Code	WLL	Vlifting
	[kg]	[m/min]	ISO			[kg]	[m/min]
VX2 0608b3 WS	63	8/2	M6		ESW-WS 00.125-3.0	125	8/2
VX2 0612b3 WS	63	12/3	M6		ESW-WS 00.16-3.0	160	8/2
VX2 0616b3 WS	63	16/4	M6		ESW-WS 00.25-3.0	250	8/2
					ESW-WS 00.5-3.0	500	8/2
					ESW-WS 01.0-3.0	1000	8/2
					ESW-WS 01.6-3.0	1600	4/1
					GNP M5/2m

• hoist SBE with hand trolley WS

• Balanser

Control:

Bespoke Customisation & Add-Ons:

We can tailor the BETA 500 to seamlessly integrate into your workflow:

• Custom Heights: Need a pillar height other than the standard 2500 mm? We can adapt the height and diameter to your specific requirements.
• Working Area Limitation: A permanent SO arm rotation limiter is fitted as standard. For highly restrictive workspaces, an adjustable SO arm rotation limiter is available as an option.
• Additional Electrical Socket: We can install an extra electrical socket at the hoist to power suspended attachments, such as vacuum grippers featuring an electric pump.

Working area limitation

SO arm rotation limiter permanent (as standard)

SO arm rotation limiter adjustable (option)

Electrical socket

SP rotation slower for crane

Installation & Concrete Floor Fastening:

The BETA 500 is designed for robust and secure fastening directly to a concrete floor.

• Fixing Method: The crane is secured via a heavy-duty steel intermediate plate mounted on chemical anchors.
• Project-Based Installation: Installation of the intermediate plate is carried out strictly on a project basis.
• Structural Requirements: Customers must provide documentation confirming the structural strength of the concrete floor to ensure it meets the necessary load guidelines.

Please Note: The listed price does not include installation costs or the required chemical anchors.

Fastening to the concrete floor via steel intermediate plate on chemical anchors
