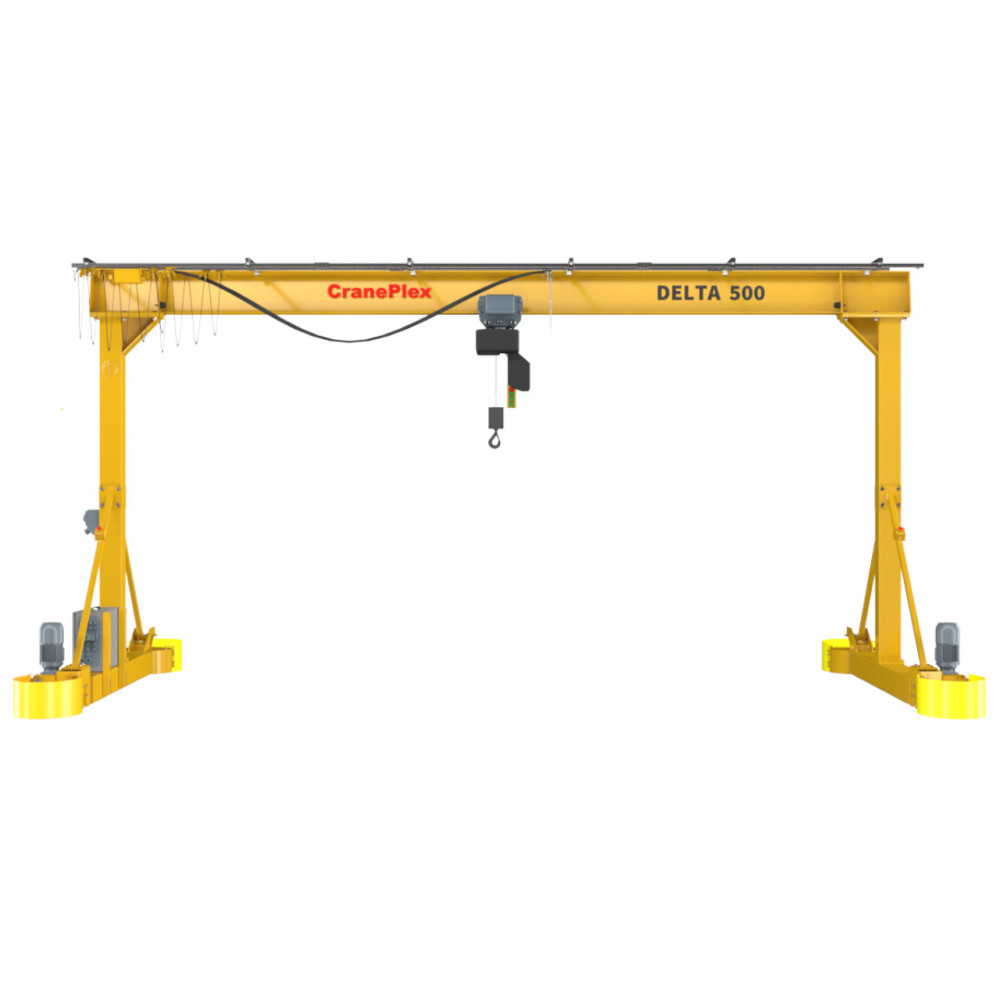

Motorised Gantry Crane DELTA 500: The Ultimate Lifting Solution for Confined Spaces

The DELTA 500 Motorised Gantry Crane, manufactured in the EU by Craneplex, is engineered for maximum performance in challenging industrial environments. Thanks to its incredibly compact design, this self-propelled crane is the definitive lifting solution for low-clearance halls where the installation of a classic overhead crane is simply impossible.

Equipped with independent drives and advanced steering capabilities, the DELTA 500 allows for highly precise manoeuvring and load positioning, even in the most limited workspaces. For maximum workplace safety, the crane is operated entirely via remote control, ensuring the operator can maintain a safe distance from the suspended load at all times.

Ideal Applications: Where Can the DELTA 500 Be Used?

Because it does not require tracks or overhead infrastructure, the self-propelled DELTA 500 is highly effective in dense, restricted, or low-ceiling environments. It is highly recommended for:

• Low-Clearance Manufacturing Halls: Perfect for facilities where roof height prevents the installation of traditional bridge cranes.
• Dense Industrial Layouts: Easily navigates tight aisles and crowded production floors to deliver heavy components exactly where needed.
• Automotive & Heavy Machinery Assembly: Enables precise positioning of heavy parts, such as chassis and engines, over assembly lines.
• Maintenance & Repair Depots: Ideal for lifting and transporting heavy machinery components out of confined maintenance bays.
• Material Processing Facilities: Safely moves heavy raw materials between processing stations without requiring manual pushing or towing.

Bespoke Adaptability: Tailored to Your Operations

The DELTA 500 is designed to integrate seamlessly into your unique workflow.

• Fully Customisable Dimensions: Whether you need a specific beam length to straddle a production line or a precise height to clear existing infrastructure, we offer bespoke modifications to tailor the crane exactly to your operational requirements.
• Scalable Capacity: The system can be configured to match your required lifting limits, ranging from 500 kg up to a heavy-duty 5,000 kg WLL.

Key Features & Operational Advantages

• Self-Propelled Efficiency: Independent electrical drives provide effortless mobility across your facility, completely eliminating the physical strain of manual pushing or towing.
• Remote-Controlled Safety: Full wireless remote control operation keeps operators safe and guarantees an unobstructed view of the load, the crane, and the surrounding environment.
• Space-Saving Design: Purpose-built to maximise lifting capabilities within low halls and tight industrial layouts.

Advanced Driving & Steering System

The DELTA 500 features a highly agile four-wheel driving system, consisting of two drive (active) castors and two swivel (passive/torsion) castors. This allows the crane to move in a straight line, travel in an arc, or execute tight turns using distinct driving modes:

• First Gear (Precision): Designed for precise straight-line travel (perfect for positioning loads along the crane's travel path) and for executing controlled turns.
• Second Gear (Transit): Designed for faster, straight-ahead driving to efficiently cover longer distances between workstations.
• Single-Sided Turning: Moves the active wheel on the outer side, causing the crane to turn smoothly relative to the inner active wheel.
• Two-Sided Turning (Rotate on the Spot): The drive wheels spin in opposite directions, allowing the crane to rotate on its own axis relative to the centre point between the active wheels.

Motorized gantry cranes are equipped with:

Driving system

• 2 swivel castors and two drive castors



The DELTA 500 self-propelled crane is equipped with four wheels, two of which,are drive (active) and two torsion (passive). The crane can move in a straight line, in an arc and can also turn.

It is equipped with two speed modes:

• First gear:

- for precise straight-line travel (positioning the load on the direction of travel of the crane)

- For turning the crane

• Second gear:

- for driving straight ahead for longer distances (faster movement between workstations),

It has two modes of turning:

- single-sided drive - moves the active wheel on the outer side, causes the crane to turn relative to the inner active wheel
- two-sided drive - the drive wheels spin in the opposite direction, causes the crane to rotate relative to the center point between the active wheels

Traffic track of motorized gantry crane DELTA 500

Twisting scheme

Electrical equipment

Certified Safety & Compliance

Quality and safety are at the core of Craneplex engineering. The DELTA 500 is proudly Made in the EU and fully complies with the highest industry standards for the UK and European markets:

• UKCA Marked
• BS EN 13001: Cranes - General design
• BS EN 60204-32: Safety of machinery – Electrical equipment of machines
• Supply of Machinery (Safety) Regulations 2008

Request a Quote for the DELTA 500

Need a lifting solution tailored to your facility's unique dimensions? Our engineering team is ready to help you configure and fully customise the DELTA 500 crane to your specific requirements.
