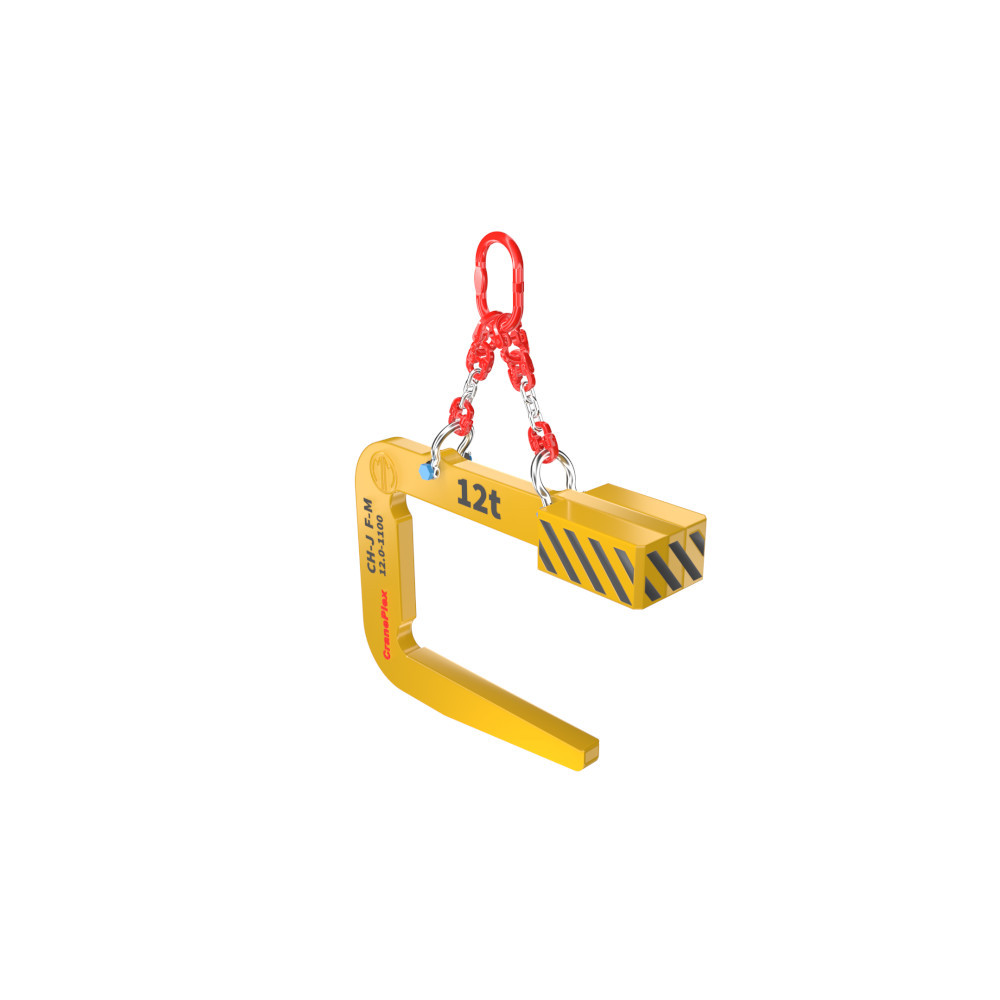

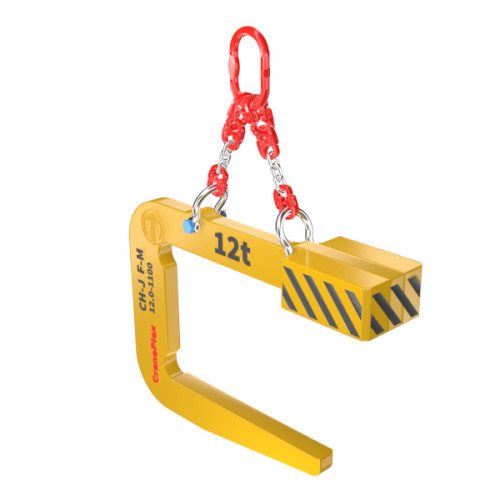

C-Hook for Metal Sheet Coil CH-J F-M

Ensure the safe, efficient, and highly precise handling of heavy materials with the CH-J F-M C-Hook for Metal Sheet Coils. Engineered specifically for the most demanding industrial environments, this premium lifting attachment is the ultimate material handling solution for steel mills, large-scale warehouses, and manufacturing facilities.

Offering a massive Working Load Limit (WLL) ranging from 8,000 kg up to an impressive 30,000 kg, this EU-manufactured coil lifter provides the uncompromising strength and reliability required for continuous heavy-duty operations.

Core Lifting Mechanics & Load Protection

The CH-J F-M is expertly engineered to transport delicate but heavy sheet metal coils without compromising their structural integrity.

• Optimal Transit Posture: The standard configuration allows coils to be securely lifted in a backwards-tilted vertical position, stabilising the load against the hook's frame. For specialised operations, perfectly vertical lifting can be achieved when paired with an additional anti-slip safety device.
• 80% Width Support: To prevent load damage, core unwinding, or deformation, the lifting arm is precisely dimensioned to provide crucial support across at least 80% of the transferred coil's total width.
• Integrated Wear Defence: The direct-contact gripping surface is reinforced with a highly durable, welded sheet metal cover. This crucial feature protects both your valuable coil inventory from surface damage and the lifting equipment itself from excessive frictional wear.

Uncompromising Safety & UK Certification

Safety is non-negotiable in heavy lifting operations. Site managers and crane operators can work with complete peace of mind, knowing the CH-J F-M C-Hook meets all strict British and European safety directives:

• UKCA Marked: Fully certified for legal and safe use within the United Kingdom.
• Regulatory Compliance: Meets all mandatory requirements of the Supply of Machinery (Safety) Regulations 2008.
• Harmonised Standards: Proudly manufactured in strict accordance with BS EN 13155 (Non-fixed load lifting attachments)

Technical Profile & Site Traceability

To facilitate seamless health and safety audits, routine inspections, and full site compliance, every CH-J F-M C-Hook is permanently stamped with a heavy-duty identification plate containing the following data:

• Product Series: CH-J F-M
• Working Load Limit (WLL): 8,000 kg – 30,000 kg
• Traceability Data: Producer’s Sign, UKCA Mark, and Factory Serial Number
• Manufacturing Details: Made in the EU (includes Year of Production)
• Equipment Specs: Exact Size and Mass (Tare Weight) of the unit

Upgrade your material handling capabilities today. Equip your facility with the CH-J F-M C-Hook for a robust, reliable, and fully compliant heavy lifting solution.
