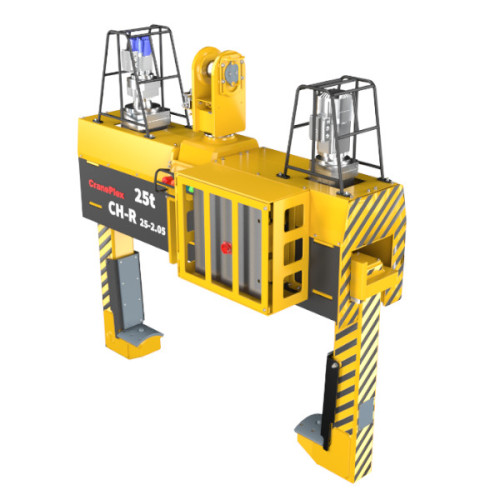

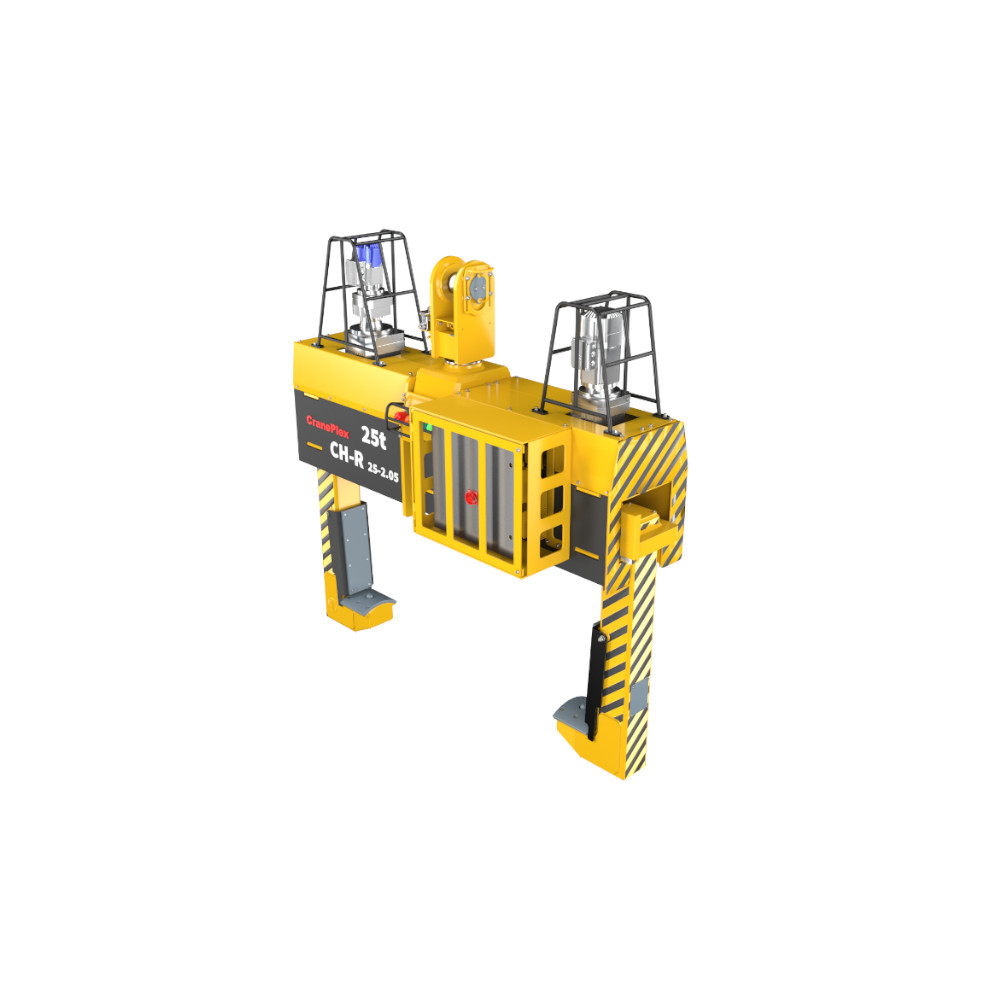

Heavy-Duty Coil Tong CH-R (Up to 25 Tonnes)

Optimise your high-capacity industrial lifting operations with the CH-R Coil Tong, a heavy-duty attachment engineered specifically for the safe and highly efficient handling of sheet metal coils.

Unlike standard C-Hooks, this premium lifting clamp is purpose-built to handle sheet coils in a strictly vertical orientation. Boasting a massive Working Load Limit (WLL) of up to 25 tonnes (25,000 kg), this tong is the ultimate material handling solution for heavy manufacturing plants, steel processing facilities, and large-scale industrial warehousing environments.

Core Mechanical Advantages & Operation

The CH-R Coil Tong utilises a distinct gripping mechanism designed for maximum stability and seamless integration into your existing logistics infrastructure:

• Two-Point Edge Engagement: The tong is engineered to support the heavy load two-pointedly directly at the side edges of the vertical coil. This dual-contact approach ensures absolute structural integrity and prevents the load from shifting mid-air.
• Seamless Crane Integration: Designed for immediate deployment, the upper assembly is perfectly adapted for direct lifting with a standard single-horn crane hook, eliminating the need for complex rigging adjustments.
• Manual Guidance Control: To ensure exact positioning prior to and during the lift, the frame is equipped with dedicated, ergonomic manoeuvring handles. This allows floor riggers to guide the tong safely and accurately without placing hands near the primary pinch points.
• Exceptional EU Manufacturing: Fabricated in the EU to the highest metallurgical standards, guaranteeing long-term durability in the most demanding heavy-duty settings.

Statutory Safety & Industrial Standards

When executing 25-tonne overhead lifts, uncompromised safety is the absolute priority. The CH-R Coil Tong is rigorously tested and fully certified to meet stringent British and European safety directives:

• Legal Certification: Proudly carries the UKCA mark, ensuring complete readiness and legal compliance for the Great Britain industrial market.
• Machinery Regulations: Fully complies with the mandatory requirements of the Supply of Machinery (Safety) Regulations 2008.
• Harmonised Engineering Norms: Manufactured in strict accordance with the core lifting standard BS EN 13155 (Cranes. Safety. Non-fixed load lifting attachments).

LOLER Audit & Traceability Markings

To facilitate regular thorough examinations (such as LOLER inspections) and ensure complete operational compliance on your site, the CH-R Coil Tong is permanently stamped with a highly visible data plate containing essential product parameters:

• Producer’s Sign & UKCA Verification Mark
• Maximum Load Capacity (WLL: up to 25,000 kg)
• Unique Factory Serial Number
• Year of Production
• Exact Size and Total Mass (Tare Weight) of the tongs

Enhance your vertical coil handling capabilities. Deploy the robust CH-R Coil Tong for secure, highly stable, and fully compliant industrial lifting.

Advanced Ergonomics & Operator Well-being

During the engineering and design phase, strict ergonomic principles were integrated to minimise both physical and mental fatigue, significantly reducing the overall effort required by the operator.

• Optimised Handling Posture: The structural shape of the device and its components are specifically designed to eliminate the need for complex movements or awkward physical postures during operation.
• Intuitive Control Interface: The control panel and active steering elements are positioned and designed for effortless, user-friendly interaction. Furthermore, the operating pace of the device is entirely dictated by the operator, ensuring maximum control and comfort.
• Acoustic & Physical Safety: Premium electric and/or hydraulic drives were carefully selected to actively reduce operational noise emissions. Additionally, all drive mechanisms are securely mounted internally, completely isolating the operator from any contact with moving parts.
• Clear Visual Safety Cues: High-visibility safety decals and symbols are strategically positioned across the device body to serve as a constant visual reminder of the maximum Working Load Limit (WLL).

Operational Note: To maximise workplace safety and fully leverage these ergonomic design features, it is strictly advised to maintain high-quality lighting conditions within the operational environment at all times.
